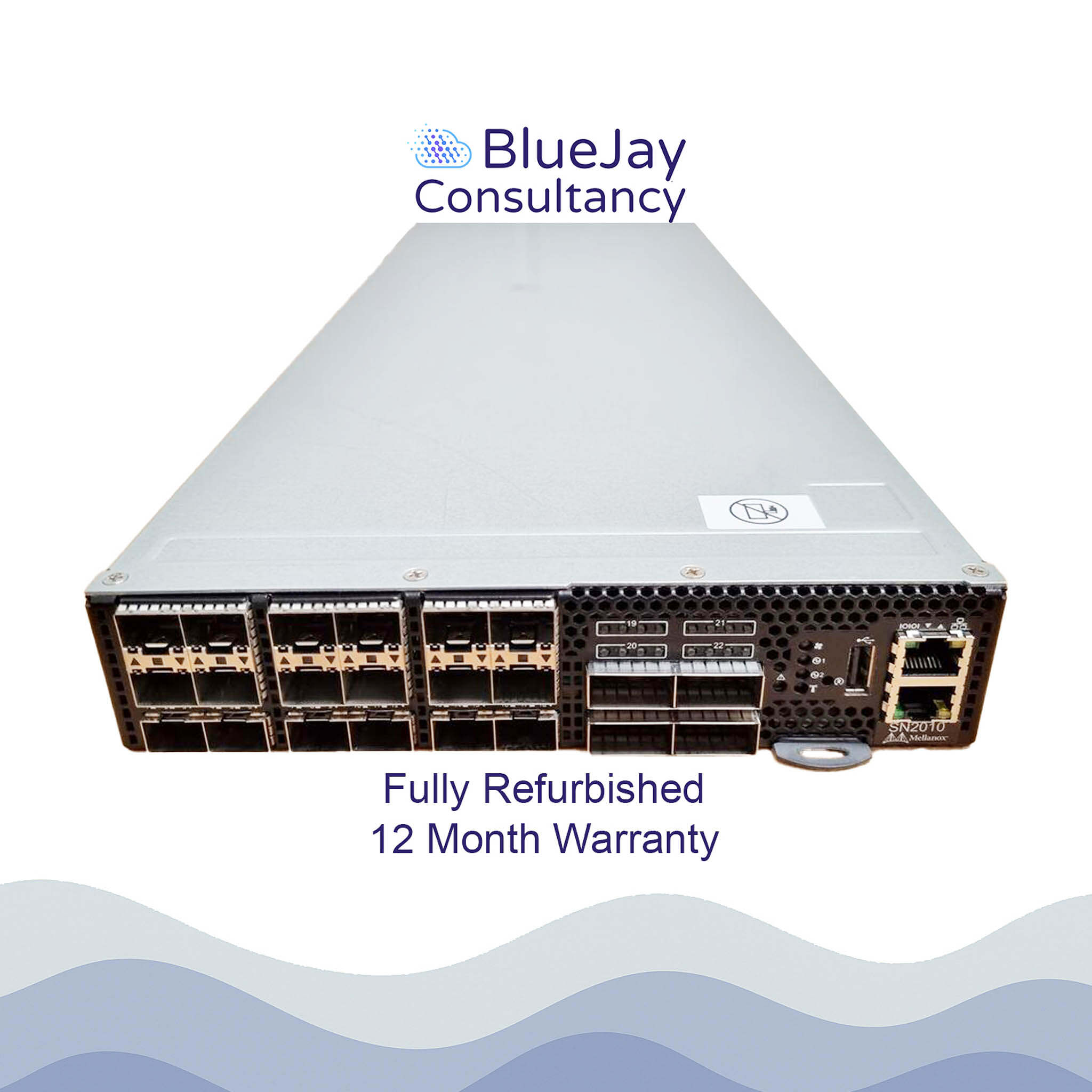

SN2010-CB2FC - Nvidia Mellanox

The NVIDIA Mellanox SN2010-CB2FC is a high-performance, compact Ethernet switch designed for hyperconverged infrastructures and storage deployments. Part of the Spectrum SN2000 series, it offers a blend of high throughput, low latency, and flexibility in a half-width 1U form factor.

Key Specifications

• Ports: 18 × 10/25GbE SFP28 and 4 × 40/100GbE QSFP28 uplinks (splittable)

• Switching Capacity: Up to 1.7 Tbps

• Forwarding Rate: 1.26 billion packets per second (Bpps)

• Latency: As low as 300 nanoseconds

• Form Factor: Half-width 1U, allowing side-by-side deployment of two units in a single 1RU slot of a 19" rack

• Weight: Approximately 4.5 kg

• Power Supplies: Dual AC PSUs

• Airflow: Front-to-back (P2C)

• Operating Temperature: 0°C to 40°C

• Operating Humidity: 10% to 85% non-condensing

• Altitude: Up to 3050 meters

Hardware and Software Features

• Processor: x86 quad-core CPU

• Memory: 8 GB DDR3L SDRAM

• Storage: 16 GB M.2 SATA SSD

• Operating Systems: Supports Cumulus Linux, Mellanox Onyx, and other ONIE-compatible OSes

• Container Support: Capable of running Docker containers directly on the switch, providing SDK access for custom applications
