R0M67A - Aruba

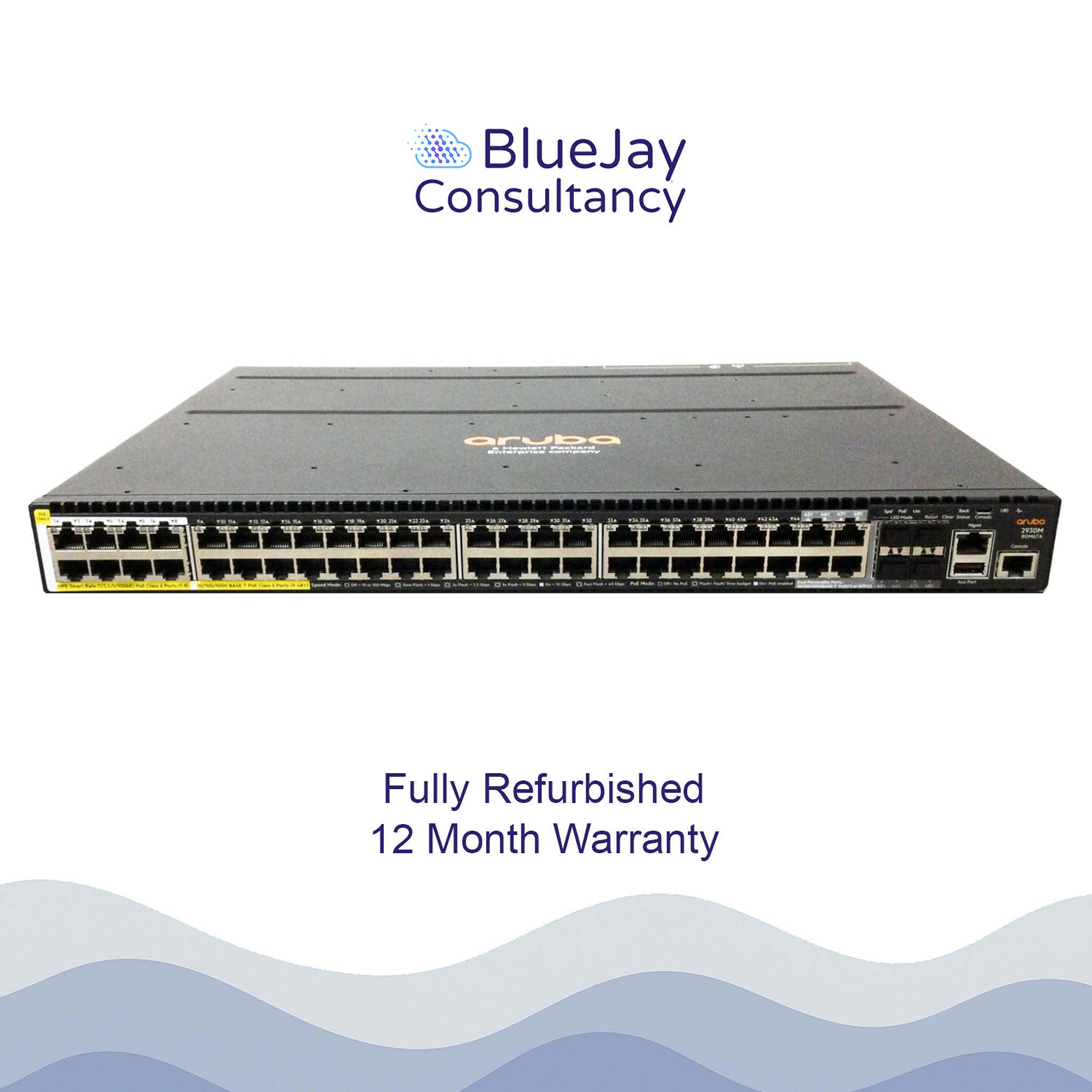

Aruba 2930M 40G 8 HPE Smart Rate PoE Class 6 1-slot Switch (R0M67A) is a high-performance Layer 3 managed switch designed for modern enterprise networks, particularly those requiring robust Power over Ethernet (PoE) capabilities and high-speed uplinks.

Key Specifications

• Ports: 48 total, comprising:

  • 36× 10/100/1000 Mbps RJ45 PoE ports

  • 4× combo Gigabit SFP ports

  • 8× multi-gigabit 1/2.5/5/10GBase-T PoE ports

• PoE Budget: Up to 1440W, supporting PoE Class 6 (up to 60W per port)

• Uplinks: Modular 10GbE (SFP+) and 40GbE (QSFP+)

• Stacking: Supports stacking of up to 10 switches with 100 Gbps stacking bandwidth

• Performance:

  • Switching capacity: 320 Gbps

  • Forwarding rate: 112 Mpps

  • Latency: as low as 3.1 μs at 1 Gbps and 3.4 μs at 10 Gbps

• Layer 3 Features: Static, RIP, and Access OSPF routing; ACLs; sFlow; IPv6; Dynamic Segmentation

• Management: Supports HPE Aruba Networking ClearPass Policy Manager, AirWave, and cloud-based Aruba Central
