MSN2410-BB2FC - Nvidia Mellanox

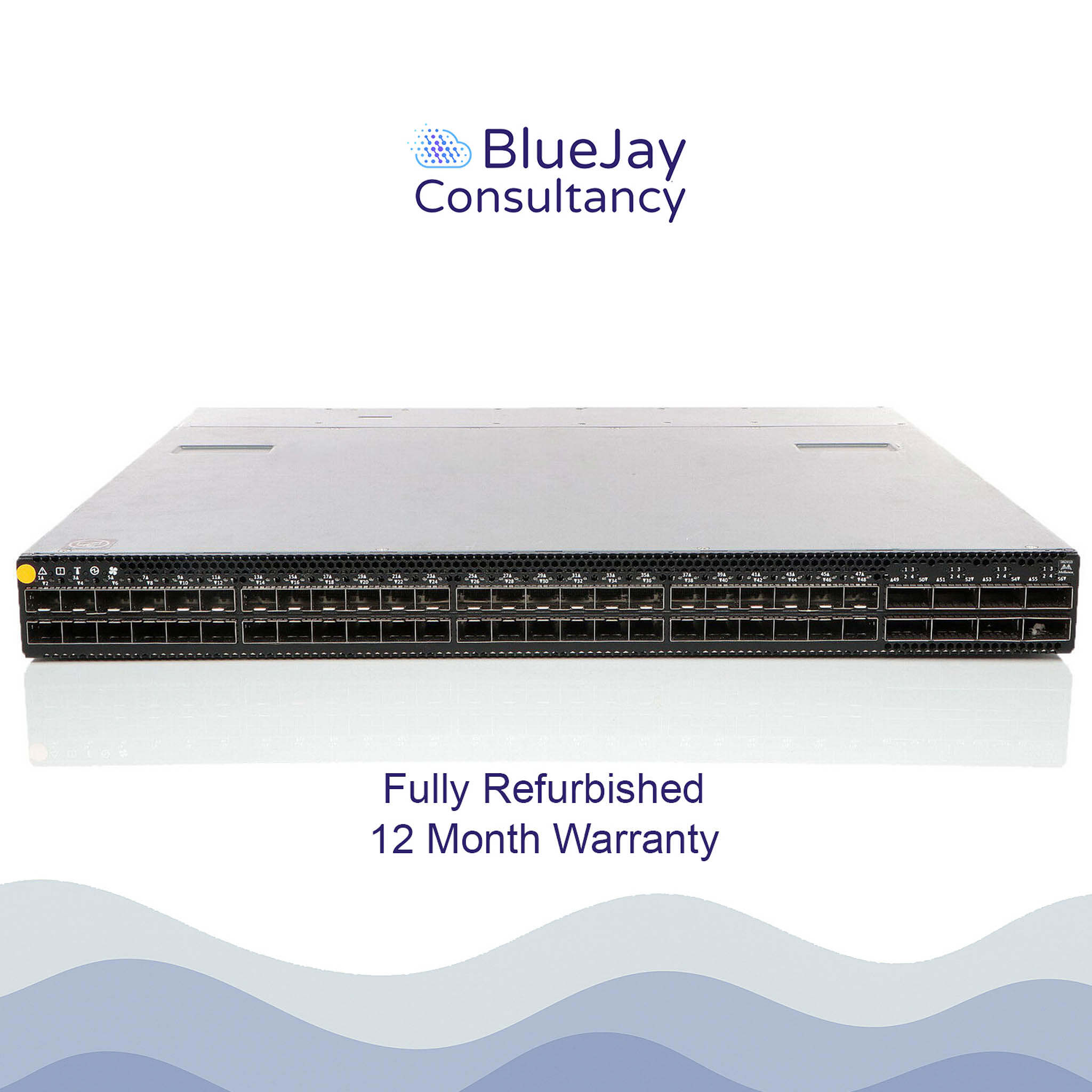

The NVIDIA Mellanox MSN2410-BB2FC is a high-performance, 1U rack-mountable Ethernet switch designed for modern data centres and enterprise environments. It's part of the Mellanox Spectrum SN2000 series and offers robust features suitable for demanding networking tasks.

Key Specifications

• Ports:

  • 48 × SFP28 ports supporting 10/25 GbE

  • 8 × QSFP28 ports supporting 40/100 GbE (each can be split into 4 × 25 GbE or 2 × 50 GbE)

• Switching Capacity: 4 Tbps

• Throughput: Up to 5.95 billion packets per second (Bpps)

• Latency: Ultra-low, optimised for high-performance computing and latency-sensitive applications

• CPU: Dual-core x86

• Operating System: Ships with Cumulus Linux

• Airflow: Back-to-front (P2C)

• Power Supplies: 2 × 460W AC hot-swappable PSUs

• Form Factor: 1U short-depth chassis

Additional Features

• Management Interfaces:

  • 1 × RJ45 console port

  • 1 × RJ45 management port

  • 1 × USB port

• Cooling: Equipped with 4 hot-swappable fans supporting back-to-front airflow

• Layer Support: Layer 3
