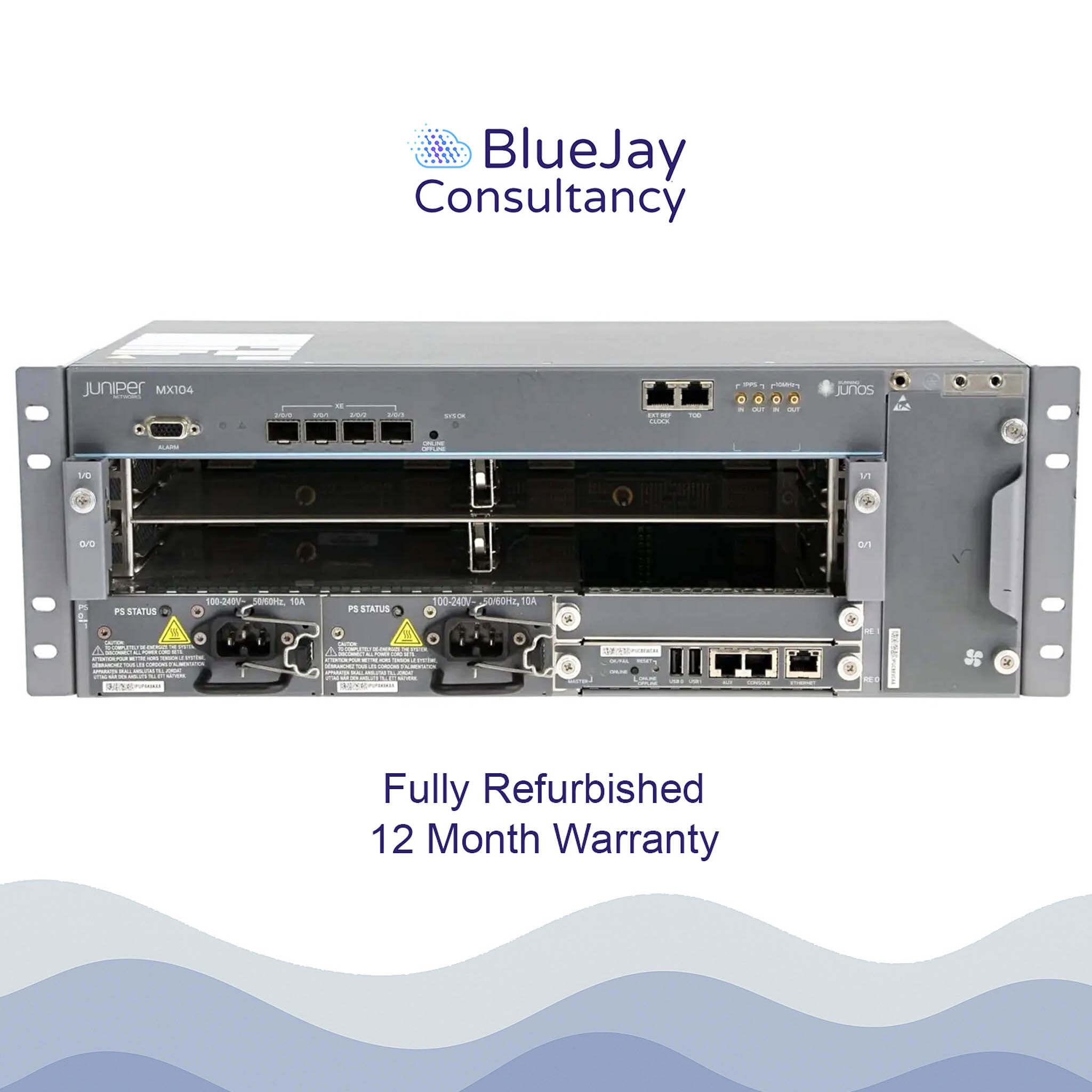

The Juniper MX104-AC is a compact, high-performance router designed for service providers and enterprises seeking efficient edge routing solutions. Here's an overview of its key specifications:
Form Factor: 3.5 RU (Rack Units)
Dimensions: 17.22" (W) × 9.46" (H) × 6.09" (D)
Weight: Approximately 32 lbs (14.5 kg)
Power Supply: Single AC input (100–240V)
Typical Power Consumption: 325W
Cooling: Fan tray with dust filter
Operating Temperature: -40°F to 149°F (-40°C to 65°C)
Operating Humidity: 5% to 90%
Maximum Operational Altitude: 6,000 ft (1,900 m)
Memory: 4 MB boot flash, 8 GB NAND flash, 4 GB DDR3 RAM
Built-in Ports: 4 × 10GbE SFP+ (activation requires license)
Modular Interface Card (MIC) Slots: 4 (supports Type 1 and double-width MICs)
Total System Throughput: 160 Gbps
Bandwidth per Slot: 20 Gbps
Maximum 1GbE Ports: 80
Maximum 10GbE Ports: 8
Performance & Features
Routing Engine: Integrated Packet Forwarding Engine and Routing Engine
Chipset: Juniper Trio chipset
Operating System: Junos OS
Licensing Options:
S-MX104-UPG-2x10GE: Activates 2 × 10GbE ports
S-MX104-UPG-4x10GE: Activates 4 × 10GbE ports
S-MX104-SSM-FP: Layer 3 Subscriber Service Management
S-MX104-Q: Per-VLAN queuing
S-MX104-ADV-R: Advanced Layer 3 routing and VPN
Rack Density: Supports up to 12 units per standard 19" rack
Mounting Options: Front or centre mounting
Use Cases:
Ethernet aggregation
Mobile and business service delivery
Edge services for metro providers
Private distributed networks
Data centre interconnects
The Juniper MX104-AC offers a scalable, high-throughput solution in a compact form factor, making it ideal for environments where space and power efficiency are critical. Its modular design, combined with flexible licensing options, allows for tailored deployments to meet specific network requirements.
